Victorian Tiles Restoration for Minton Floor Revitalisation

What Underlying Issues Cause Persistent Dullness in Walsall's Minton Floors Post-Cleaning?

Assessing the Condition of Victorian Tiles for Effective Restoration

If your Victorian tiles appear dull despite multiple cleaning efforts, the underlying issue is likely due to trapped contaminants and structural movement, rather than just superficial dirt. The Minton hallway in Walsall showed signs of a compromised surface, muted colours, loose tiles, an outdated sealer, and residues embedded within the clay body. Routine mopping only redistributed grime without providing effective removal. This situation clearly indicated the necessity for restoration, employing specialised techniques that surpass standard cleaning methods.

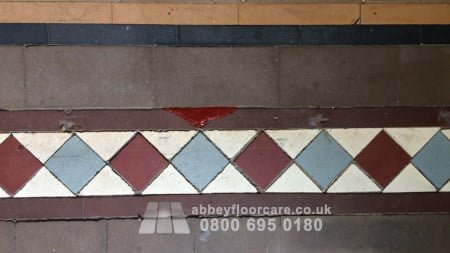

Despite the Walsall hallway retaining its status as an original patterned entrance floor, the surface failed to reveal the vibrant contrasts of red, buff, cream, and dark clay typically found in a restored Minton layout. Foot traffic had pushed fine soil into the tile surface, while the old topical sealer had diminished the finish. Grout lines darkened due to the build-up of surface residues. A similar scenario was noted in the Minton tile floor restoration in Ovington, where previous coverings and compacted dirt concealed the original floor until restoration uncovered the intricate pattern.

Walsall boasts numerous late Victorian and Edwardian terraced houses, alongside interwar semi-detached homes and post-war housing developments. A substantial portion of the older housing stock dates back to the late 19th and early 20th centuries, making Victorian tile floors particularly common in entrances, porches, pathways, and occasionally kitchens within these historic properties. As part of the West Midlands metropolitan county, Walsall is managed by Walsall Council, with the majority of central areas identified by the WS postcode districts. The town's rich industrial heritage and well-preserved period housing contribute to the prevalence of original clay and encaustic tile floors, often obscured beneath modern coverings or outdated sealers.

How Can You Identify Hidden Residues That Dull Your Tiles?

The presence of trapped residues is the reason the hallway appeared worn despite years of cleaning. The porous clay surface allowed dirt, old cleaning agents, waxes, and coating residues to settle beneath the visible tile layer. While fresh water might temporarily moisten the contamination, it was not sufficient for thorough removal. This illustrates the practical implications of tile porosity on an ageing Minton floor: soil infiltrates the pores, accumulates around grout lines, and results in a flat appearance even after diligent cleaning.

The old topical sealer formed an inconsistent barrier across the floor. Coatings that initially provided temporary shine can degrade into sticky residues, trapping grime and creating darker patches in areas where the finish has worn thin due to foot traffic. The restoration process required careful stripping of the old sealer, releasing the surface residues, thoroughly rinsing the floor, and extracting the resulting slurry with a wet vacuum before applying any protective finish.

Contamination from carpet adhesives also posed a challenge, as many Walsall hallway tiles had previously been covered with carpet, linoleum, or vinyl at different times. A hidden layer can be concealed beneath thick glue, bitumen residues, tape remnants, and staining that only becomes evident once the covering is removed. In this instance, no significant adhesive presence dominated the hallway; however, the inspection sought out brownish glue, black bitumen, softened coatings, and scraper marks, as these residues can affect the restoration sequence.

What Role Does Moisture Behaviour and Tile Stability Play in Restoration?

The characteristics of old permeable sub-floors significantly affected the cleaning and sealing methods suitable for the Walsall floor. Excess water can penetrate the porous clay, reach the underlying bedding, and potentially lead to tile movement, lifting, dampness, salt reactions, or an unstable foundation before sealers are applied. This moisture behaviour necessitated reliance on controlled cleaning, careful rinsing, and extraction rather than flooding the hallway with water.

Tile movement was a critical factor since water and slurry can infiltrate beneath raised edges and into gaps. Once slurry dries beneath the tile surface, the floor may continue to appear dirty from the edges, even after the main surface has been cleaned. The restoration process treated the floor as a cohesive historic assembly: clay tiles, grout lines, bedding, moisture pathways, and breathable protective measures all needed to function harmoniously together.

During the survey, the condition of missing tiles, backfilled doorway patches, exposed sub-floor areas, cement leveling compound backfill, and previous repair infills were evaluated. Cement leveling can disrupt the original tile pattern, obstruct the visual continuity, and leave a repaired hallway looking patchy rather than seamless. This Walsall floor primarily required local resetting rather than extensive replacement work, but assessing the doorway, original tiles, and sub-floor condition ensured that a simple clean was not mistaken for a proper restoration.

Why Is This Restoration Project Indispensable?

This undertaking fell under the category of restoration, as mere cleaning would not resolve loose tiles or address the failures of old coatings. The work was necessary to tackle compacted grime, surface coatings, grout line residues, moisture risks, and unstable areas before any sealing could occur. A comparable restoration sequence is documented in the Victorian tile restoration case study in Penkhull, where loose sections and damaged joints also required reintegration into the overall floor layout for a visually coherent result.

The original Minton pattern had not disappeared; rather, it was visually obscured. Restoration effectively removed the old products and ingrained dirt that muted the colours, subsequently protecting the clay with a breathable finish instead of a heavy surface film. Following professional intervention, the floor was expected to display a significantly improved appearance, and a professionally restored and properly sealed Victorian tile floor is considerably easier to clean and maintain compared to a worn or improperly treated floor.

Ongoing maintenance is vital for protecting the restored clay surface, which involves removing dry grit before wet mopping and using a pH-neutral cleaner instead of harsh household chemicals. Strong cleaners should be avoided as they may leave alkaline residues, bleach grout lines, and shorten the lifespan of the sealed finish. Broader maintenance principles for older porous clay floors are detailed in the Victorian and Minton tile cleaning hub, which offers support for the aftercare decisions made in this Walsall case study.

What Factors Led to Loose Tiles and Accumulated Soil in This Restoration Project?

The presence of loose Minton tiles and deep soil necessitated the restoration of this hallway, as the underlying issues originated beneath the visible surface. The homeowner observed dull colours, dark joints, and unstable areas, yet the root causes included movement, trapped residues, and contaminated slurry paths beneath and between the original tiles. Structural re-bedding was essential to address these issues before deep cleaning could effectively restore the floor to a uniform state.

The removal of slurry was crucial, as loosened soil, rinse water, mineral salts, and old coating residues needed to be extracted from the tile pores rather than allowed to re-dry within them. The restoration process employed controlled water, agitation, rinsing, and wet vacuum removal, ensuring the floor was cleaned without excessively saturating the old permeable sub-floor. Similar movement and moisture behaviours are discussed in the right way to restore Victorian tiles properly, illustrating how stabilization and breathable protection are integral components of the historical flooring restoration sequence.

Stabilising loose tiles is essential before deep cleaning can uniformly restore the floor.

What Techniques Were Utilised to Stabilise the Walsall Hallway While Maintaining Original Tiles?

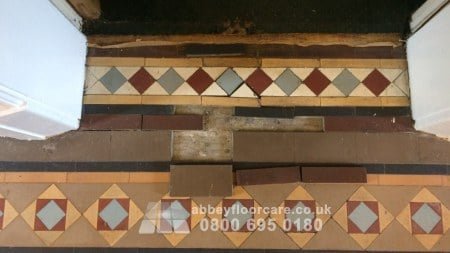

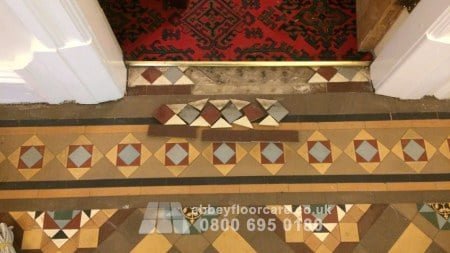

Scrubbing a loose Minton hallway before stabilising it risks pushing slurry beneath the tiles, potentially damaging fragile edges. In this case, loose sections were carefully lifted, old bedding and residues were removed, and the tiles were reset to preserve the integrity of the original layout. This method ensured that repairs remained an integral part of the restoration workflow rather than evolving into a separate repair narrative.

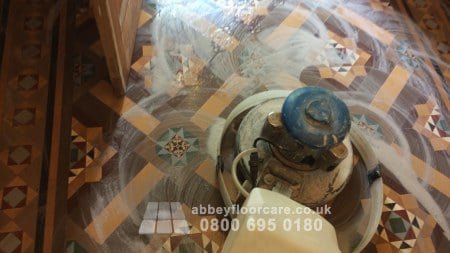

Thorough surface cleaning could have eliminated some visible grime, but it would not have addressed the old sealer, grout smears, mineral salts, and residues lodged within the pores. Controlled restoration employed an alkaline cleaner, scrubbing pad, rotary machine, clean rinse water, and wet vacuum extraction to eliminate contaminated slurry from the tile surface and joints. In instances where acid wash neutralisation was necessary due to alkalinity, traces of cement haze or mineral salts were rinsed away before moisture could evaporate and disturb the colour balance.

Careful stabilisation protected the original tiles, as the process was dictated by the floor's condition rather than applying a one-size-fits-all approach across the entire area. Broken tiles, missing tiles, and the requirement for matching replacement tiles were all considered to ensure that the pattern exhibited continuity. This hallway primarily required resetting, thorough cleaning, and breathable protection. This sequence restored the floor's appearance, simplified surface maintenance, and avoided grinding down the historic clay face.

How Did the Restoration Process Enhance Clarity While Preserving Historic Character?

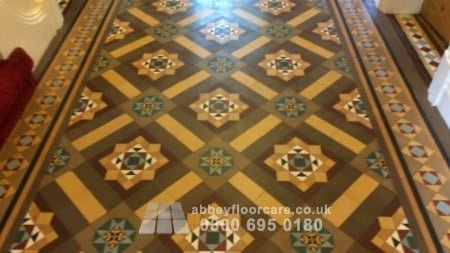

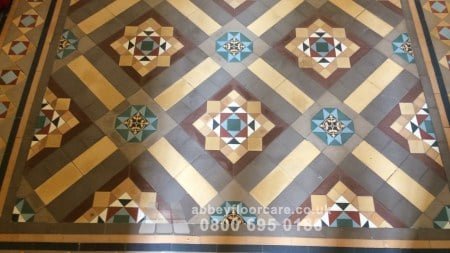

If your Victorian tiles exhibit colours concealed beneath layers of dull wear, restoration should enhance definition without erasing the genuine age of the floor. The Walsall floor regained its vibrant contrasts as old coatings, embedded residues, and dark joint contamination were meticulously removed from the clay surface. The original Minton pattern became more prominent, while authentic signs of traffic wear and historical character remained evident.

Historic dishing was preserved, as grinding the floor flat would have removed original fired clay from the tile surface. Dishing represents permanent wear accumulated over decades of foot traffic and should not be perceived as a failure when the finished floor retains its historical context. The protective finish applied was a breathable colour-enhancing sealer that penetrated the pores, was buffed off without leaving a superficial coating, and provided stain resistance while allowing moisture to escape.

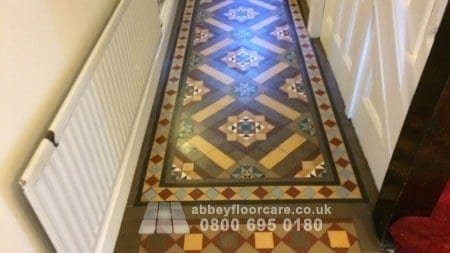

The completed hallway showcased a significantly enhanced appearance compared to its pre-restoration state and, in many respects, surpassed how it might have appeared under outdated domestic coatings. The sealed surface became easier to maintain, as removing dry grit, employing neutral pH cleaning, and resealing at appropriate intervals helped preserve the restored colour depth. The behaviour of colour in worn patterned clay is further explored in restoring colour and pigment to faded Victorian mosaic tiles, which delves into surface wear and clay pigment depth in greater detail.

Where Can You Discover More About Common Victorian Tile Challenges?

Understanding common Victorian tile challenges requires a comprehensive approach, as residues, loose sections, faded colours, and missing pieces rarely occur in isolation. The Walsall hallway exemplifies the need for a holistic restoration perspective: the original tiles, grout lines, moisture pathways, coating histories, and final protective measures all contributed to the outcome. A related Minton hallway project is detailed in the Minton tile hallway restoration in Stafford, where surface contamination and controlled extraction similarly shaped the final appearance of the floor.

When addressing broken or missing tiles, it is crucial to source and match replacement tiles with care. Quality repair work respects the original size, colour, border logic, thickness, and layout of the old floor to ensure new work integrates seamlessly with the existing design. More extensive cleaning, sealing, and aftercare guidance can be found in the Victorian and Minton tile cleaning hub, which connects this Walsall outcome to broader material guidance.

Proper ongoing maintenance remains the key factor in prolonging the life of the restored floor. A tailored handover should provide practical advice: remove grit before wet cleaning, use a pH-neutral maintenance cleaner, avoid bleach or steam cleaning, and evaluate sealing processes before the surface begins to absorb spills rapidly again. Simple yet crucial.
