Solar Switchboard Upgrade Enhances Chelmer’s Air Conditioning

Project Location: Chelmer
Project Scope: Enhancement of switchboard
Result: Comprehensive single-phase switchboard upgrade that accommodates a 17.86kW solar installation, 30kWh battery storage system, and ducted air conditioning—without the need for a three-phase upgrade.

Why You Should Choose Precision Electrical & Air for Your Switchboard Upgrade

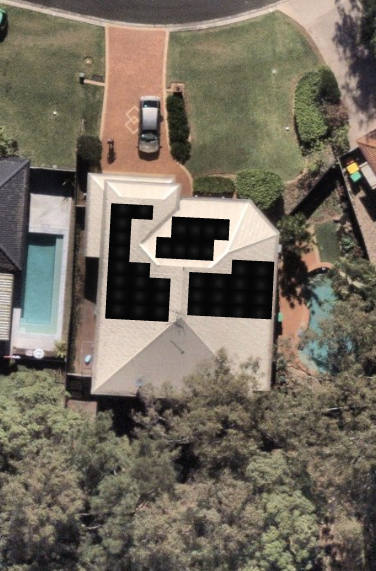

This homeowner in Chelmer undertook a significant renovation project that incorporated the installation of a powerful 17.86kW single-phase solar photovoltaic (PV) system, a 30kWh modular battery storage solution, and comprehensive blackout protection for the entire property. Additionally, a modern ducted air conditioning system was integrated into the overall design. Before linking these sophisticated systems, it was imperative to evaluate and enhance the existing switchboard to ensure it complied with the latest standards and effectively managed the increased electrical loads introduced by these installations.

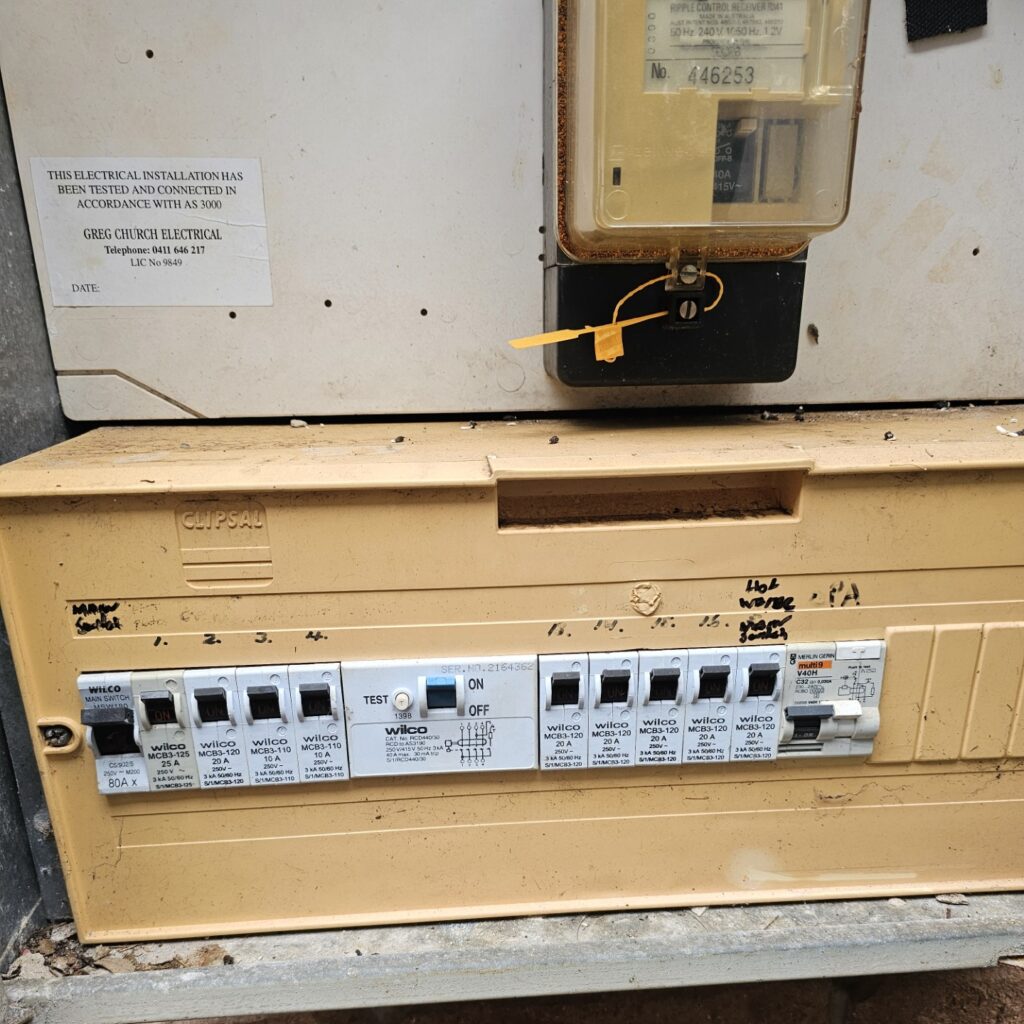

The original switchboard was outdated, featuring obsolete circuit breakers and only a single Residual Current Device (RCD) that provided protection for the entire property. It lacked the capacity to support solar energy integration and battery storage effectively. Furthermore, the circuit labelling was inadequate, making it non-compliant with modern regulations governing contemporary energy generation systems. This lack of compliance posed a significant risk to the efficient operation of the newly enhanced systems.

Is a Three-Phase Upgrade Really Necessary for Your Home's Energy System?

When assessing the specifications of a 17.86kW solar system combined with a 30kWh battery, many homeowners mistakenly believe that a three-phase upgrade is absolutely essential. This misconception can lead to significant financial implications, potentially incurring costs ranging from £3,500 to £6,000, in addition to a prolonged wait for approval from Energex for necessary network modifications.

Thorough Technical Assessment to Determine Upgrade Necessity

Two critical factors influenced the determination of whether a three-phase upgrade was necessary. Firstly, the supply cable for the residence was strategically located near the street junction. This advantageous positioning allowed the voltage rise calculation for solar energy export to comfortably remain within Energex's single-phase limit of 2%. Secondly, the solar and battery systems are engineered to minimise demand on the grid rather than increase it, eliminating any technical justification from the network's perspective for the need for a three-phase upgrade. Furthermore, the ducted air conditioning system was also found to be compliant with essential parameters for efficient single-phase operation.

As a result, the decision was made to retain the single-phase configuration. The switchboard was enhanced to ensure it could safely and competently manage all new electrical loads without compromising safety or adherence to regulatory standards.

Comprehensive Examination of Installed Components for Enhanced Safety and Compliance

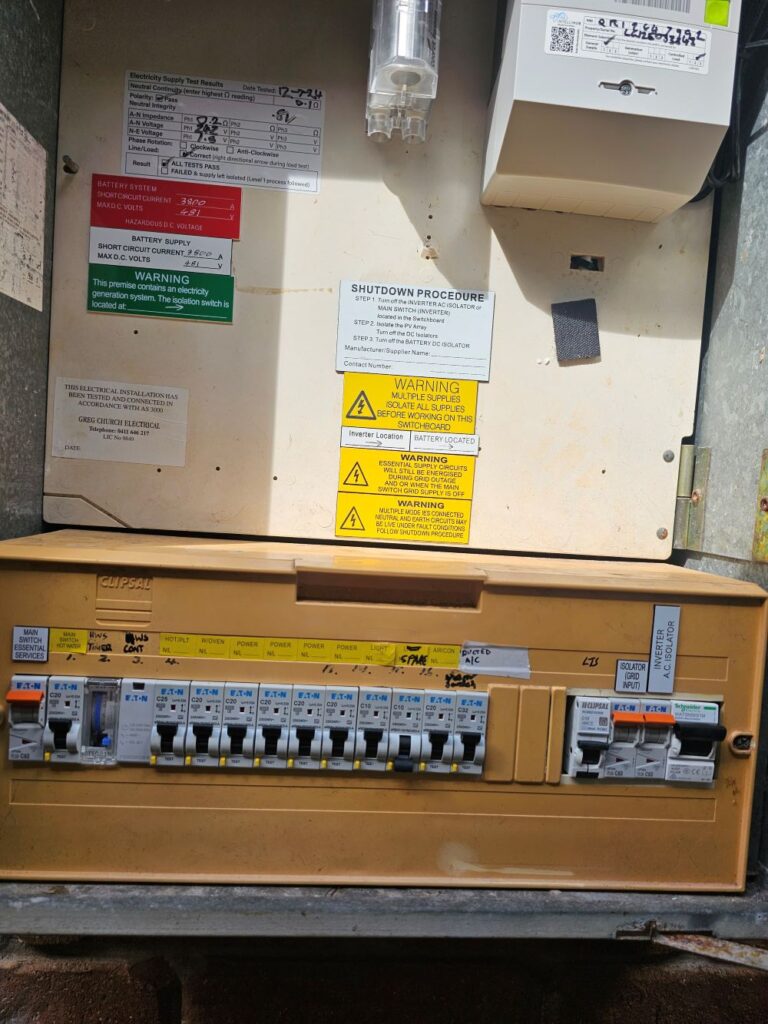

The existing switchboard underwent an extensive dismantling and comprehensive reconfiguration process. Each circuit breaker was replaced with new, appropriately rated units sourced from Eaton, with meticulous labelling for easy identification. The circuits were carefully segregated, ensuring that power, lighting, hot plates, ovens, split system air conditioning, and ducted air conditioning each received dedicated circuits. This approach not only enhances safety but also guarantees compliance with current regulations.

A timer was integrated into the hot water service to ensure its efficient operation during peak solar generation hours. This strategic addition significantly diminishes dependence on the grid by optimising the use of the solar system's output throughout the day. Moreover, a dedicated Hot Water Service (HWS) contactor circuit was installed to ensure optimal functionality and efficiency.

The upgraded switchboard was designed for seamless integration with both the solar inverter and the battery system. This included the installation of an AC isolator, a dedicated grid isolator, and comprehensive safety labelling that clearly indicated the battery system's rating at 481V DC, featuring a short-circuit current of 3800A, in addition to multiple supply warnings and a complete shutdown procedure. All electricity supply tests were successfully conducted and documented for the switchboard.

The completed switchboard now fully complies with the latest Australian standards, ensuring it is appropriately set up for any future electrical service work required at the property.

Homeowner Benefits from a Successful Upgrade

The homeowner has successfully obtained a fully upgraded and compliant switchboard that can safely support their solar system, 30kWh battery storage, and ducted air conditioning, all functioning efficiently within a single-phase configuration. Most importantly, they avoided unnecessary expenses associated with a three-phase upgrade that was not required for their specific situation.

Have You Received a Quote for a Three-Phase Upgrade and Are You Unsure of Its Necessity?

While three-phase upgrades can be essential in certain circumstances, they are not universally required. If you have received a substantial quote for a switchboard upgrade and are uncertain about its relevance to your specific situation, let Precision Electrical & Air perform a detailed analysis. We will provide you with a transparent assessment based on your cable distance, load requirements, and the genuine criteria that Energex will utilise to approve your property.

We promise to avoid upselling; you will receive a precise evaluation tailored to your home's needs.

Addressing Your Frequently Asked Questions

How do electricians determine if three-phase power is necessary for solar systems?

The assessment relies on two primary factors: voltage rise and load demand. Electricians evaluate the distance of the cable from your property to the street junction, calculating the potential voltage increase when your solar system exports energy back into the grid. Energex permits a maximum voltage rise of 2% for single-phase connections. If the cable run is short and the solar system's export remains within this limit, a single-phase configuration is adequate. However, if the voltage rise exceeds this threshold, three-phase power becomes essential to distribute the export load across three conductors, effectively keeping the voltage rise within acceptable parameters.

Does having a larger solar system automatically require three-phase power?

No, the size of the solar system alone does not dictate the requirement for three-phase power. A 17.86kW solar system can operate legally and safely on a single-phase basis if the voltage rise calculations are favourable and no new high-demand loads are added to the property. Key considerations include the cable length to the street junction, the existing load profile of the home, and the technical requirements from the network distributor—not solely the kilowatt rating of the solar panels.

What is voltage rise, and why is it critical for solar energy installations?

Voltage rise refers to the increase in electrical voltage that occurs when a solar system sends power back into the grid. The farther your home is from the street junction, the greater the resistance in the cable, leading to a higher voltage rise during energy export. Excessive voltage rise can create complications for neighbouring properties connected to the same line. Network distributors like Energex enforce strict limits—typically set at 2% for single-phase connections. Electricians must calculate whether your solar system's performance stays within this limit to ascertain whether single-phase or three-phase power is appropriate for your property.
