Minton Colours Revealed in Victorian Tile Restoration

Discover the Causes of Worn and Patchy Minton Tile Floors in Ovington

Conducting a Detailed Assessment of the Floor's Initial Condition

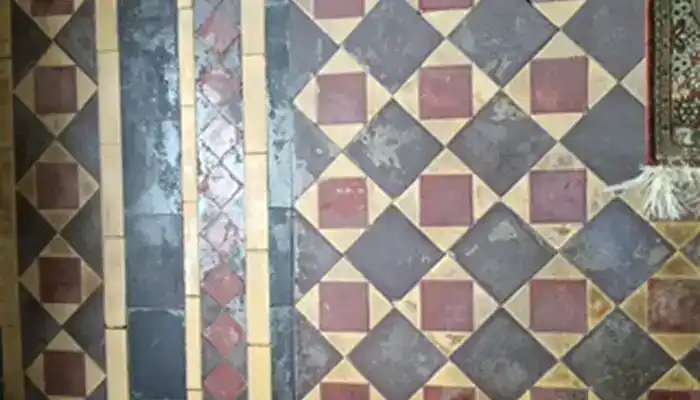

If your Minton tiles appear worn and patchy, seemingly beyond repair, it is likely that old coatings, adhesive remnants, and surface wear are hiding the original design. In the Ovington hallway, a dark residue obscured the surface, with clear remnants of old glue from previous coverings and tiles beginning to shift near weakened joints. The once-bright surface no longer displayed the original colour balance effectively.

This restoration project aimed to rejuvenate a residential hallway floor that had been in use for over a century, still revealing its original geometric layout. The Minton tiles had endured decades of heavy foot traffic, yet layers of waxes, acrylic sealers, remnants of old sealers, and carpet adhesive had constructed a grimy barrier, making the floor seem more damaged than it truly was.

The village of Ovington is home to many older residential properties, including period cottages and detached houses from the Georgian and Victorian eras, alongside a limited number of modern homes built in the latter half of the twentieth century. Victorian tile floors are commonly found in entrance hallways, porches, boot rooms, and even kitchens within these older residences. Ovington, located in Buckinghamshire near Aylesbury, falls within the HP22 postcode district and is governed by Buckinghamshire Council. The village retains a traditional rural charm, with numerous properties still showcasing original period features and robust floor constructions.

Investigating Residue History and Revealing Hidden Marks on the Floor

If your hallway has dark patches after removing carpet, it is likely that old glue and surface treatments have adhered to the tile rather than simply lying as loose dirt. Upon the removal of the covering, the carpet adhesive left behind yellow-green and brownish residues, remnants of bitumen, hardened substances, and old glue smears. Addressing these issues required softening, scraping, and extraction, rather than just another wash.

Contamination from paint and adhesive further complicated the condition of the Ovington floor, as paint splatters, scraped areas, and stained sections initially appeared permanent. In my experience, these residues often reside partially on the fired surface while penetrating the open pores. The restoration process necessitated distinguishing between removable contamination and actual wear before any sealing decisions could be made.

Ancient wax and linseed oil coatings had significantly darkened the floor, as these coatings can seep into the tile body over time. The dull surface was burdened with these protective layers, soiling, and residues from previous cleaning treatments. Removing this layer was crucial before accurately assessing the original colours.

Identifying Loose Areas and Understanding Moisture Dynamics

If your hallway tiles are moving or sound hollow, excessive water and heavy machine pressure may be exacerbating the issue. The old permeable sub-floors beneath this hallway could allow water to infiltrate if excessive amounts were used, risking tile movement, lifting of edges, dampness in the bedding, and potential instability during the work.

Loose tile movement occurs when individual tiles shift due to weakened bedding or grout support beneath them. Homeowners may notice cracked joints, hollow sounds, moving tiles, shifts along grout lines, or small raised and sunken areas. The solution involves stabilising, re-fitting, or carefully working around these vulnerable sections before introducing stronger cleaning forces.

Subfloor moisture was treated as a critical constraint since older floors were often installed without modern damp proof membranes. Breathable protection is vital for porous tiles, as trapped moisture, rising damp, and surface moisture can lead to salt issues and sealers that may whiten or fail, rather than providing effective protection for the tile body.

The risk of over-saturation influenced each cleaning decision; excessive water can dislodge tiles, activate salt problems, and prolong the drying process post-restoration. Techniques such as wet vacuum extraction, controlled rinsing, removal of soiled solutions, and the use of floor fans helped manage moisture levels. Damp meter checks and moisture readings confirmed readiness for sealing before applying protective measures.

Assessing Surface Wear and Recognising Patterns

If your main walkway appears flatter and greyer than the borders, decades of foot traffic have likely worn down the fired face more significantly in that area. The Ovington hallway exhibited this common wear pattern, where the tile face had become more porous under footfall, allowing for increased absorption of dirt, contaminants, and coating residues.

It is critical to understand that this worn fired face cannot be rectified through grinding. Victorian encaustic and geometric tiles are clay-fired at high temperatures; their fired surface is chemically stable but physically vulnerable to abrasion and incompatible with acidic cleaning methods. The use of abrasive pads, harsh restoration techniques, and over-cleaning can damage soft clay inlays, ruin intricate patterns, and inflict long-term harm to the original surface. Such damage is not worth the risk.

Colour wear varied significantly; black and red tiles tend to be more durable, while softer buff tiles may wear more quickly. The Ovington floor required cleaning, residue removal, and colour enhancement that respected the unglazed clay colours rather than imposing a uniform new-looking surface.

A well-restored Victorian tile floor showcases the original fired matte surface with consistent colour and pattern. Appropriately applied topical seals provide a slight protective sheen without altering the period character. This distinction was crucial in this instance, as the aim was to recover the original features and subtle sheen of a period hallway, rather than create an artificial surface.

Understanding the Value of Restoring the Floor

If the pattern remains discernible beneath the dark layer, restoration can often recover far more than standard cleaning might suggest. The darkest areas of the Ovington hallway were primarily composed of old coatings, wax build-up, acrylic sealers, adhesive, and ingrained soil, rather than indicating complete pattern loss.

The restoration specification allowed for adequate dwell time, controlled soak periods, deck brush agitation where safe, and the use of a floor buffer only in areas with minimal movement risk. Wet vacuum extraction was employed to remove slurry and softened residues. Hand-held diamond blocks were exclusively for careful edge work, while scrapers, small brushes, hand buffers, and white pads managed softened coatings, excess sealers, and final appearances without resorting to aggressive abrasion.

Maintaining proper ongoing care is crucial for extending the floor’s lifespan, including pH-neutral cleaning, grit removal before wet mopping, and resealing at appropriate intervals. Stronger cleaning products should be avoided, as incorrect cleaners can leave residues, increase abrasion, and gradually strip protection from sealed floors. Broader care principles are outlined in the Victorian and Minton tile cleaning hub. A professionally restored and correctly sealed floor is significantly easier to clean and maintain compared to one that is worn or treated incorrectly.

Understanding the Impact of Old Adhesive and Failed Coatings on Dirt Accumulation in the Hallway

The presence of adhesive residues and failed coatings continuously attracted dirt back into the hallway, as they bonded contaminants to the worn clay surface. The old glue, bitumen, waxes, and surface coatings trapped grime in the pores, causing standard mopping to redistribute dirty solutions rather than effectively removing the residue layer.

This issue, known as residue lock-in, occurs when old products, stripped coating fragments, and ingrained dirt remain trapped within the surface after cleaning. Homeowners frequently observe dark patches, cloudy areas, and a floor that appears dull again after drying. Correcting this issue necessitates the use of coating removers, controlled scrubbing, rinsing stages, and wet vacuum extraction.

Old residue retains dirt within worn clay surfaces.

How Victorian Tile Restoration Effectively Removes Heavy Residue Without Disturbing Loose Areas

Using aggressive stripping methods can inadvertently loosen unstable historic clay tiles while attempting to safely remove the old coating layer. Rushed cleaning often employs excessive water and pressure, which can lift loose tiles, damage vulnerable edges, and force slurry into weakened joints.

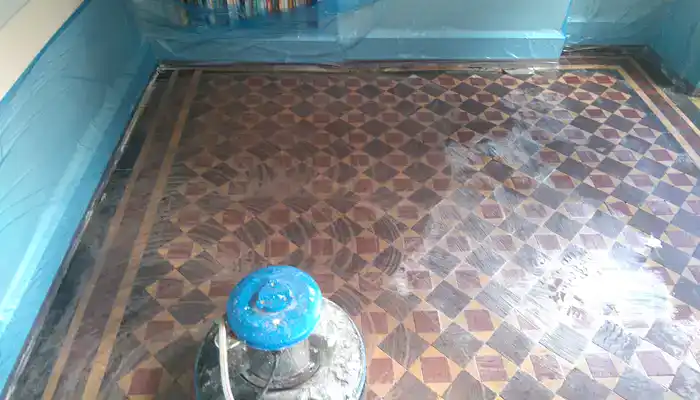

Controlled restoration techniques employed dwell time, low-moisture gel cleaning, careful scraper work, deck brush agitation, wet vacuum extraction, and repeated rinse control to lift softened coatings without saturating the bedding plane. This moisture-led sequencing is central to the proper restoration of Victorian tiles, as old floors require a harmonious approach to cleaning, stabilising, and drying decisions. The process effectively removed heavy residues while safeguarding the original layout.

Incomplete stripping would have left old sealers, adhesive, and soiled solutions in the pores, resulting in a patchy appearance once the floor dried. The Ovington sequence achieved a significantly superior outcome, as softened residues were extracted rather than smeared around, and a dry run before sealing confirmed the surface was adequately prepared for protection.

Why the Restored Minton Floor Appeared Clearer, Richer, and Easier to Maintain

If your restored Minton floor appears clearer and richer after sealing, it indicates that the original colour was preserved beneath the coating residues. Initially, the Ovington floor looked lighter after cleaning because the removal of waxes, old sealers, carpet adhesives, and grime from the surface revealed the true colour.

The colour-enhancing impregnating sealer penetrated the pores, enriched the geometric patterns, and left no heavy coating across the tile surface. An oil-based sealer can be compatible with suitable porous surfaces, but this floor required breathable protection, with any excess sealer buffed off using a hand buffer, resulting in a low sheen that respected the original clay character.

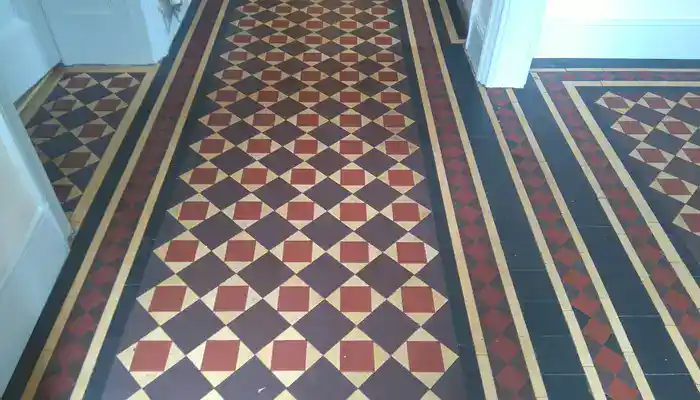

The completed hallway now looks significantly improved compared to its previous state. In many cases, restored period floors appear better than when they were first installed, as the original colours and patterns can be appreciated clearly. The floor also became easier to maintain, as sealed pores resist rapid soiling, while the authentic surface wear remains a testament to the floor's age and character.

Case Studies of Victorian Tile Restoration Projects That Reveal Hidden Pattern Loss

Numerous Victorian tile restoration projects expose similar hidden pattern loss when old coatings and worn clay create the illusion of permanent damage. The Ovington hallway closely parallels a worn Minton floor restoration project in Walsall, where loose areas and deep soil also dictated the restoration sequence. Both projects highlight the importance of contamination removal, drying, and breathable protection before the final colour can be accurately assessed.

Similar examples can be found in Victorian tile restoration in Nottingham, Victorian tile restoration in Penkhull, and restoring colour to faded Victorian mosaic tiles. These cases maintain consistent restoration boundaries while demonstrating how old coatings, worn surfaces, moisture behaviour, and colour recovery can differ from one floor to another.

The comprehensive Victorian and Minton tile cleaning hub offers homeowners insights into cleaning and care issues without converting this Ovington case study into general DIY instructions. The evidence presented here reflects a singular completed project: a dark, adhesive-marked, and worn hallway was successfully transformed into a clearer, richer, and more manageable heritage surface.
