Flat Metal Roof Leaking Issues Explained Simply

How to Identify and Address Common Issues with Flat Roofs for Homes on the Central Coast

Although flat roofs have not traditionally been the dominant roofing choice in Australia, their popularity is steadily increasing among both residential and commercial properties. These types of roofs are frequently found on patios, carports, walkways, and in areas requiring low-pitch roofing. When the slope is minimal, flat roofs can also be classified as “skillion roofs.”

Flat roofs present a variety of benefits; however, they also come with unique challenges that homeowners must be aware of. Recognising the common issues associated with flat roofing systems and applying strategies to mitigate them is essential, particularly on the Central Coast. The coastal climate, heavy rainfall, and salt-laden air can exacerbate roofing complications.

What Drives the Increasing Popularity of Flat Roofs Among Homeowners?

Flat roofs are gaining traction in both residential and commercial constructions for various compelling reasons, including:

• They are quicker and simpler to install, resulting in faster project completion.
• They provide easier maintenance access, which simplifies routine inspections and repairs.
• They serve as ideal platforms for solar panel installations, enhancing energy efficiency.

The foremost concern regarding flat roofs is effectively managing water drainage. Water is the primary adversary of your roof. When planning for a new roof installation or updating an existing system, it is vital to consider various factors, particularly rainfall, which can vary significantly across Australia's diverse regions.

What Are the Main Drainage Challenges Associated with Flat Roofs?

Unlike pitched roofs that allow rainwater to flow off quickly into gutters, flat roofs have a limited slope. This design can lead to water accumulation that persists for extended periods. If rainwater is not efficiently directed off the roof, it may cause:

• Surface staining and deterioration of roofing materials, compromising their integrity.
• Long-term structural weakening of roofing components over time.
• Accumulation of mould and mildew, which can pose significant health risks.
• Leaks that may penetrate the interior of the building, causing further damage.

The solution to these challenges lies in effective roof plumbing and thoughtful design that caters to the unique requirements of flat roofs.

How to Enhance Flat Roof Designs for Optimal Drainage Efficiency

Before installation, a qualified roofing contractor will evaluate several critical factors that influence drainage efficiency:

• Local rainfall intensity and prevailing weather patterns.
• Overall roof area and precise dimensions.
• Gutter configurations and efficient drainage outlets.
• Downpipe dimensions and specifications.
• Overflow prevention mechanisms to manage excess water effectively.
• Considerations regarding roof pitch to improve drainage capabilities.

Most roofing manufacturers recommend a minimum slope of 5° for low-pitch roofs. Roofs with less than this slope can endanger waterproofing efforts and may even void product warranties, leading to expensive repair costs.

Standard corrugated roofing sheets, while ideal for pitched roofs, are not suitable for very low-pitch applications. For flat roofs, it is highly advisable to use specific roofing profiles that are engineered for efficient water shedding to ensure long-term performance.

Exploring the Best Metal Roofing Profiles for Low-Pitch and Flat Roof Applications

Two of the most recommended roofing profiles for low-pitch and flat roofs include:

Trimdek: This adaptable profile is suitable for both roofing and wall applications. Its 28mm rib height and specially designed capillary groove improve water tightness, even at a minimal pitch of 2°.

Kliplok: This innovative clipped roofing profile utilises hidden clips rather than screws to secure sheets. This design effectively prevents water ingress through screw penetrations, making it an excellent choice for low-pitch installations.

Choosing the right roofing profile based on your roof pitch and local rainfall conditions is crucial for ensuring the long-term performance and reliability of your roofing system.

How to Effectively Manage Box Gutters and Flat Roof Drainage Systems

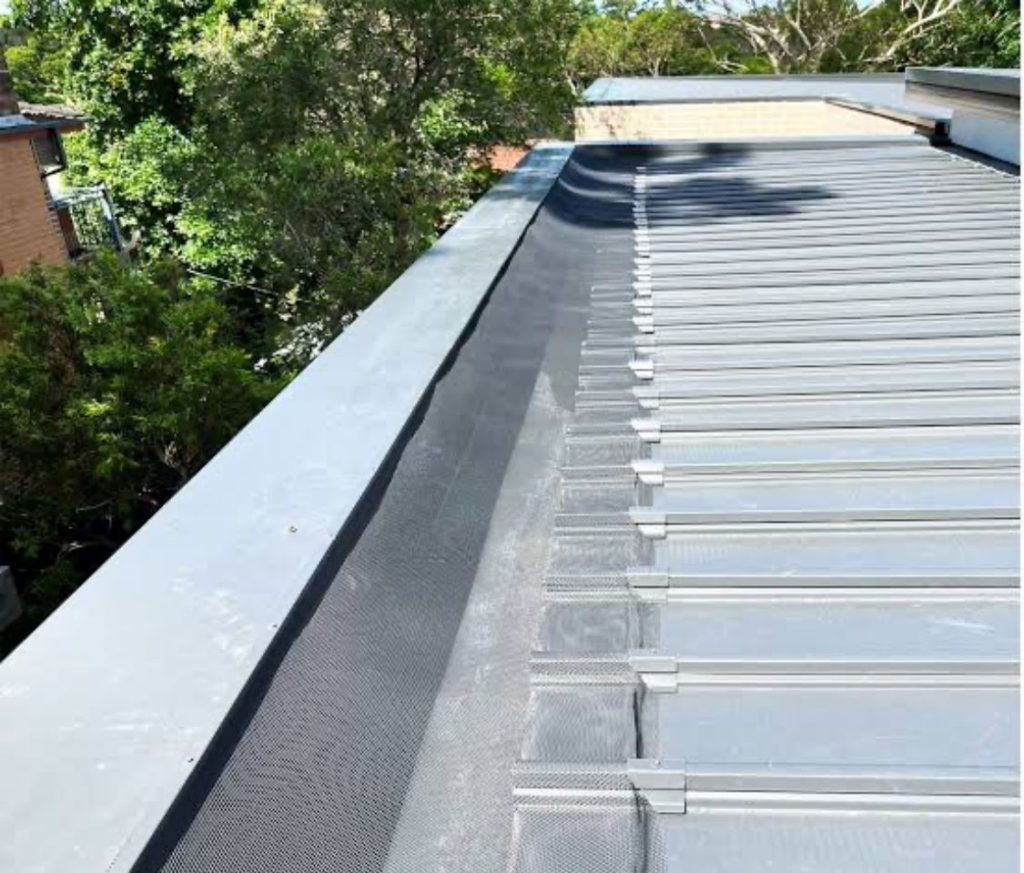

On flat roofs, box gutters are often employed to connect roof panels to drainage outlets. As box gutters are positioned below the roof plane, they require careful detailing and installation to prevent blockages and water back-up problems.

Common challenges associated with box gutters include:

• Debris accumulation from surrounding trees and foliage, which can obstruct flow.
• Improper fall or slope that impedes water movement.
• Overflowing back into the roof structure, resulting in leaks.
• Blocked downpipes that hinder effective drainage.

Addressing these challenges begins with thoughtful gutter design and a commitment to regular maintenance to guarantee optimal functionality.

What Key Factors Should You Consider When Choosing Guttering for Your Flat Roof?

Standard gutters may not adequately manage the water flow requirements associated with flat roofs. It is often essential to install guttering specifically designed to handle larger water capacities. Next, we will explore various drainage and overflow solutions that can be integrated into your flat metal roof design.

• Facilitate quicker water removal during periods of heavy rainfall.
• Efficiently sweep away debris with high flow capabilities.
• Provide easier cleaning and maintenance options for homeowners.

Our top recommendation for gutters is self-cleaning designs, which are ideal for flat metal roofs while also offering an aesthetically pleasing appearance!

We advocate for a half-round gutter due to its superior water-carrying capacity, enabling faster drainage. This design effectively removes silt and sludge build-ups with each rainfall, ensuring a cleaner system over time.

For optimal performance on flat roofs, gutters should be appropriately sized based on local rainfall patterns and connected to adequately sized downpipes (for instance, 100mm × 75mm) that can handle substantial water volumes. In areas abundant with trees, installing leaf diverters or guards can significantly mitigate blockage issues.

How Flashings Are Essential for Preventing Water Entry at Roof Joints

Flashings are critical components installed at joints where roof sheets meet walls or other surfaces, including around skylights, chimneys, and at internal corners. On flat roofs, proper flashing installation is vital, as water can accumulate around these joints if they are not correctly sealed.

To effectively prevent water ingress:

• Flashings must be meticulously shaped to conform to the roof profiles.
• Waterproof sealants should be applied at all joints to ensure tight seals.
• Extra attention is required at corners and seams, where water may collect.

By ensuring that flashings and sealants are installed correctly, you can achieve a watertight roof, even during heavy rainfall. Our team takes extra precautions during installation and utilises high-quality waterproof sealant to prevent water from pooling in these vulnerable areas.

Why Is Regular Maintenance Essential for the Longevity of Flat Roofs?

Flat roof systems, particularly those connected to box gutters, require routine inspections and maintenance to ensure their effectiveness. This includes:

• Removing debris from gutters and box gutters to ensure unobstructed drainage.
• Checking downpipes for any signs of potential blockages.
• Inspecting roof surfaces for small cracks or areas where water may accumulate.
• Re-sealing flashings as necessary to maintain waterproof integrity.

Conducting regular maintenance checks can prevent the need for more extensive repair work in the future, thereby extending the life of your roofing system.

Discover the Advantages of Properly Installed Flat Roofs

When designed and installed by skilled metal roofing professionals, flat roofs provide:

• A modern, sleek architectural aesthetic that enhances property value.
• Optimised space for patios, decks, or utility services, maximising utility.
• Convenient access for maintenance or solar panel installation, simplifying upkeep.

Additionally, flat roofs can seamlessly integrate with existing pitched roof structures when drainage and detailing are managed correctly, enhancing the overall functionality and appearance of the building.

How to Ensure You Receive the Right Flat Roof Installation on the Central Coast

A well-designed and expertly installed flat metal roof can deliver both functionality and long-lasting durability in the coastal environment. Whether you are embarking on a new construction project, extending a patio, or adding a carport, selecting the right roofing system and drainage design is crucial for optimal performance and longevity.

Contact AWS Roofing today to request a quote and secure your installation date. With another wet summer on the horizon, now is the perfect time to address any roofing issues and prevent further complications in the future.

Flat Roof Frequently Asked Questions: Do Flat Roofs Encounter More Problems Compared to Pitched Roofs?

Flat roofs can indeed face more drainage challenges if they are not designed correctly. Without an adequate slope, water may pond or leak into the building structure. However, when constructed with the appropriate pitch, roofing profile, box gutter design, and flashing techniques, flat roofs can be just as resilient as pitched roofs.

What is the Optimal Roof Pitch for a Flat or Low-Slope Roof?

Most roofing manufacturers recommend a minimum pitch of 5 degrees for metal flat roofs. Profiles such as Trimdek and Kliplok can function effectively at pitches as low as 2 degrees when installed correctly and sealed against water. Anything below 5 degrees necessitates careful selection of materials and detailed guttering strategies to ensure proper drainage.

Is it Possible to Install Solar Panels on a Flat Metal Roof?

Absolutely, flat metal roofs are ideal for solar panel installations. The accessible surface simplifies the installation process and enhances safety. Typically, panels are tilted on angled mounts to optimise sun exposure and prevent water from pooling underneath, ensuring efficiency in energy production.

What Exactly Are Box Gutters and Why Are They Utilised on Flat Roofs?

Box gutters are internal roof gutters situated below the roof line, often located between roof sections or along parapet walls. They are commonly used on flat roofs to effectively manage runoff; however, they must be carefully sized and sloped to avoid blockages and overflow issues that could compromise the roof's integrity.

Do Flat Roofs Require Special Gutters or Downpipes?

Yes, flat roofs generally necessitate higher-capacity gutters and larger downpipes to manage effective water drainage. Half-round gutters and 100x75mm downpipes are frequently employed to enhance flow and prevent water accumulation. Additionally, overflow devices and leaf diverters may be beneficial in reducing maintenance needs.

What is the Lifespan of a Flat Metal Roof?

When installed correctly, equipped with proper drainage, and maintained regularly, a flat Colorbond or Zincalume metal roof can last anywhere from 20 to 30 years or even longer. Keeping box gutters clear and resealing flashings as required will significantly extend the roof's lifespan and performance.
